CyberEVF WVGA 0.32” Color LCD Optical Module

The CyberEVF® WVGA is a compact Electronic ViewFinder (EVF) Color Optical Module aimed for commercial, industrial, and rugged applications. It integrates a transmissive WVGA 0.32” color LCD (854 x 480 resolution) that’s masked to provide a WVGA (640 x 480 resolution) viewing area, an efficient waveguide backlight, and optics with an easy-to-use focusing mechanism.

CyberEVF provides a bright full-color image with less than 1% distortion in a 23.8° (diagonal) field of view and comfortably large eye box (TBD mm) and eye relief (17.4 mm).

CyberEVF and Kopin’s A912 Display Driver ASIC together consume less than TBD mW at display brightness of TBDcd/m2, sufficient for outdoor usage. Further system power savings are achievable using capabilities on the ASIC and LCD.

Resolution	854 x 480 (WVGA), only 640 x 480 (VGA) is viewable
Contrast Ratio (Typical)	100:1
Large Virtual Image Size	421 mm Diagonal / 334 mm Horizontal / 250 mm Vertical

Field of View	23.8° (Diagonal) / 19° (Horizontal) / 14.3° (Vertical)
Eye Relief	17.4 mm
Distortion	<1%

> 436 (Typical) cd/m2 @ 15 mA to Backlight

Dimension	25 (W) x 18 (H) x 25 (D) mm
Weight	6.4g

A914 (MIPI) or A912 Low-Power ASIC

< 200 mW at 350 cd/m2
< 240 mW at 500 cd/m2

See All Products

Markets +  Applications

Technologies + Products

Kopin in the world

About Kopin

CyberEVF® WVGA 0.32” Color Electronic ViewFinder (EVF)


Optics

Brightness

Mechanical

Drive Electronics

Power Consumption (Display + BL + ASIC)

YOU MIGHT ALSO BE INTERESTED IN

Other Optical Module Products

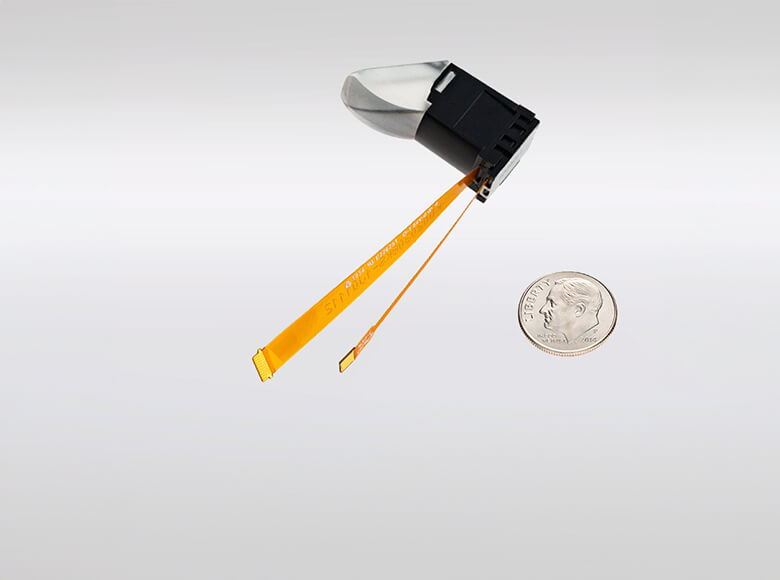

White Pearl WQVGA Module

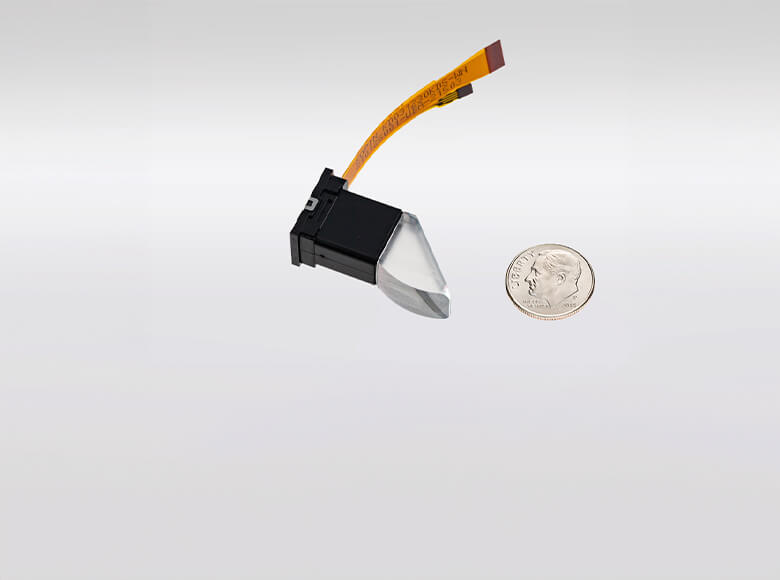

Golden Pearl WVGA Module

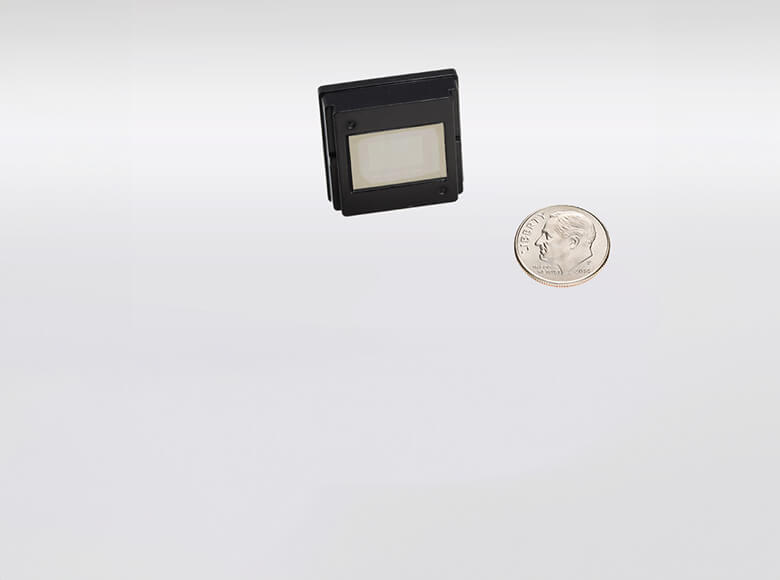

Ruby SVGA Module

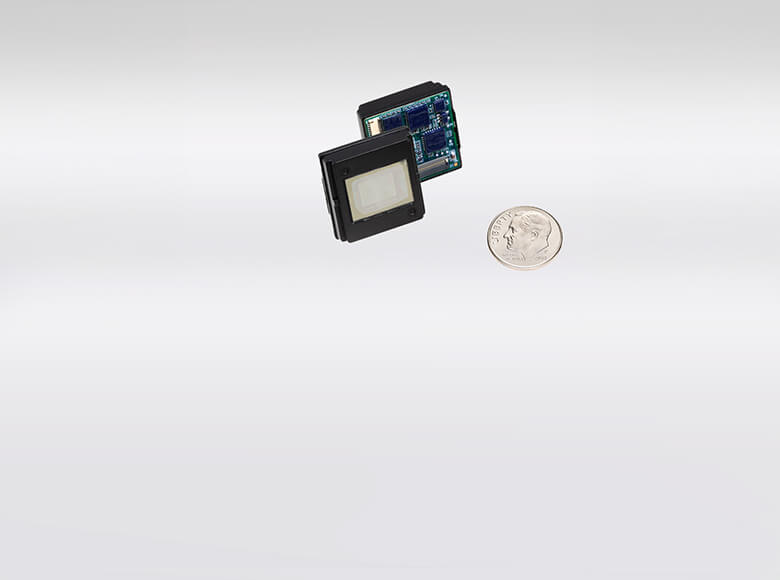

Emerald SVGA Module
